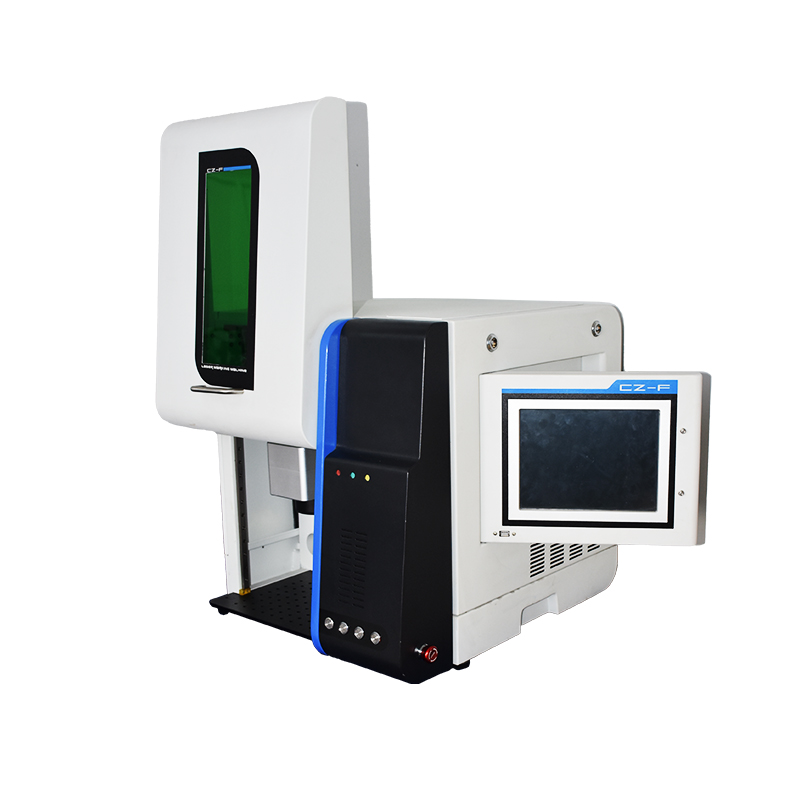

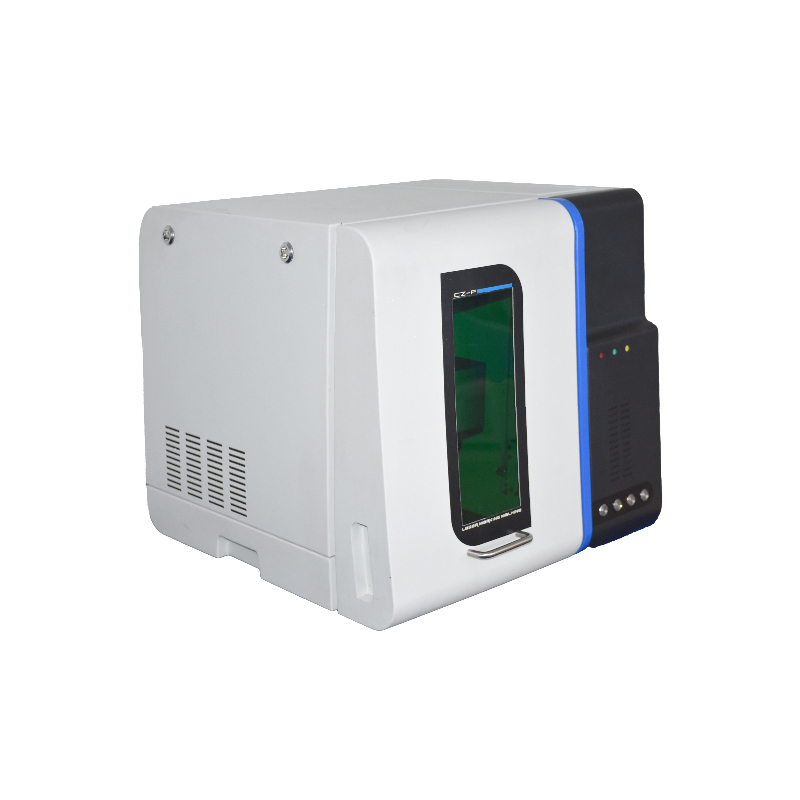

全封閉式小型打標機
光纖打標機
適用材料∶適用于所有的金屬材料和大部分非金屬材料。
應用行業∶廣泛應用于五金制品、衛浴潔具、醫療器械、汽車配件、集成電路、電子元器件、電線電纜、橡膠塑料、液晶屏、金銀首飾、電腦手機平板配件、食品飲料包裝、化妝品包裝，藥品包裝、機械加工、航空航天、軍工制品等諸多領域。
獨特的全密封光路設計，保障設備穩定運行。
THEUNIOUEFULLYSEALED OPTICAL PATHDESIGN ENSURES THE STABLE OPERATIiON OF THE EQUIPMENT.
免維護，無耗材，設備運行成本極低
MAINTENANCE FREE, NO CONSUMABLES,AND THE OPERATION COST OF THE EQUIPMENT ISVERY LOW 激光脈沖頻率高，標刻速度快THE LASER PULSE FREQUENCY IS HIGHAND THE MARKING SPEED IS FAST
電光轉換轉化效率高達30%，節能高效，整機每小時耗電量?jī)H500-1000W
THE ELECTRO-OPTICCONVERSIONEFFICIENCYISASHIGH AS 30%.WHICH ISENERGY-SAVING AND EFFICIENT.THE POWER CONSUMPTION OF THE WHOLE MACHINE IS ONLY 500-1000W PER HOUR
THEUNIOUEFULLYSEALED OPTICAL PATHDESIGN ENSURES THE STABLE OPERATIiON OF THE EQUIPMENT.
免維護，無耗材，設備運行成本極低
MAINTENANCE FREE, NO CONSUMABLES,AND THE OPERATION COST OF THE EQUIPMENT ISVERY LOW 激光脈沖頻率高，標刻速度快THE LASER PULSE FREQUENCY IS HIGHAND THE MARKING SPEED IS FAST
電光轉換轉化效率高達30%，節能高效，整機每小時耗電量?jī)H500-1000W
THE ELECTRO-OPTICCONVERSIONEFFICIENCYISASHIGH AS 30%.WHICH ISENERGY-SAVING AND EFFICIENT.THE POWER CONSUMPTION OF THE WHOLE MACHINE IS ONLY 500-1000W PER HOUR
標刻軟件為全中文界面，操作簡便直觀
THE MARKING SOFTWARE HASAFULLCHINESE INTERFACE, WHICHIS SIMPLE AND INTUITIVE TOOPERATE
設備體積小，重量輕，方便移動和安裝
THE EQUIPMENT HAS THEADVANTAGES OF SMALL VOLUME, LIGHTWEIGHTAND CONVENIENTMOVEMENTANDINSTALLATION
標刻內容靈活可變，線條精美
THEMARKING CONTENTISFLEXIBLEAND CHANGEABLE, AND THE LINESARE EXOUISITE
THE MARKING SOFTWARE HASAFULLCHINESE INTERFACE, WHICHIS SIMPLE AND INTUITIVE TOOPERATE
設備體積小，重量輕，方便移動和安裝
THE EQUIPMENT HAS THEADVANTAGES OF SMALL VOLUME, LIGHTWEIGHTAND CONVENIENTMOVEMENTANDINSTALLATION
標刻內容靈活可變，線條精美
THEMARKING CONTENTISFLEXIBLEAND CHANGEABLE, AND THE LINESARE EXOUISITE
產品參數
| 功率 | 20/30/50/100/150/200W | 可調波形 | 固定/可調 |
| 激光波長 | 1064-1070NM | 脈寬 | l~200ns |
| 單脈沖能量 | 0.5-L2mJ | 光束質量 | M2≤1.2 |
| 脈沖重復頻率 | l-2000kHz | ||
| 打標范圍 | 70*70-30（T300mm可選（選配三軸模塊后可擴展至1200*1200） | ||
| 雕刻線速 | 100-1000字符渺（不同配置場鏡110mm,岸線字體，字高1mm） | ||
| 最小字符 | 0.3mm | 重復精度 | 0.01mm |
| 雕刻深度 | ≤0.5mm,視材料而定 | 整機耗電 | 500-1000W |
| 用電需求 | 220V/50HZ | 整機冷卻方式 | 風冷 |
| 運行環境溫度 | 0-40°C | 最小線寬 | 0.01mm |
樣品展示
